Steam Plant

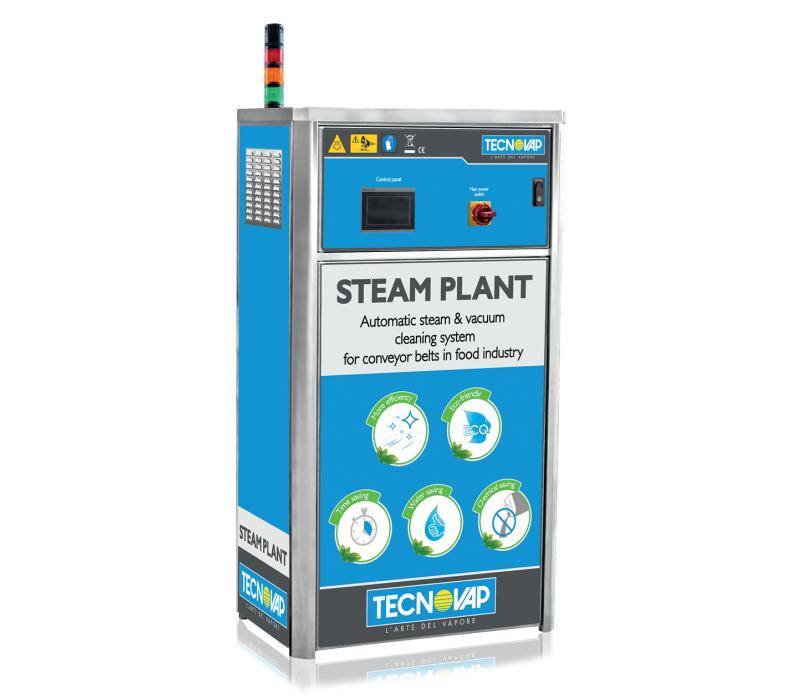

Three-phase steam generator combined with an automated conveyor belt cleaner for use in the food industry.
Equipped with a stainless steel body, unlimited steam autonomy thanks to an automatic water refilling system (electromechanical water level control system inside the boiler – True Temp™) with a direct water mains connection.
Front panel with 7″ touchscreen for managing the plant and belt cleaner functions. Automated Steam Plant for cleaning and sanitisation of conveyor belts. Supplied with appropriate seals according to the field of use. Application is possible during the production cycle.
Size/Operations: Steam conveyor cleaning Power Source: 415 volts/50Hz
Discover Steam Plant
Benefits
Efficient Cleaning
The three-phase steam generator combined with the automated conveyor belt cleaner provides efficient cleaning and sanitisation of conveyor belts, which is essential in the food industry.
Automatic water refilling
The steam generator has an automatic water refilling system with an electromechanical water level control system, ensuring unlimited steam autonomy and minimising the need for manual intervention.
Touchscreen control
The front panel of the system features a 7" touchscreen, which allows for easy management of the plant and belt cleaner functions.
Application during production
The automated steam plant can be applied during the production cycle, which minimises downtime and ensures that the conveyor belts remain clean and sanitised throughout the production process.
Equipment specifications
| Boiler | Stainless steel AISI 304 |
| Body | Stainless steel AISI 304 (BA) |
| Boiler volume | 11L - 12.5L |
| Maximum output | from 10,8kW to 36kW |
| Operating pressure | 6 - 10 bar |
| Steam Temperature | 165°C - 183°C |
| Steam production (g/min) | 291 - 970 gr/m - 17,5 Kg/H to 58 Kg/h |
| Vacuum output | 3.6 kW |
| Air flow | 320 m3/h |
| Operating pressure | 6 - 10 bar |
| Depression | 3200 mm |
